Supersonic Arc Spraying Drying Cylinder Corrosion Resistant

Making Paper Industry Anti-corrosion Dryer Cylinder

Share to:

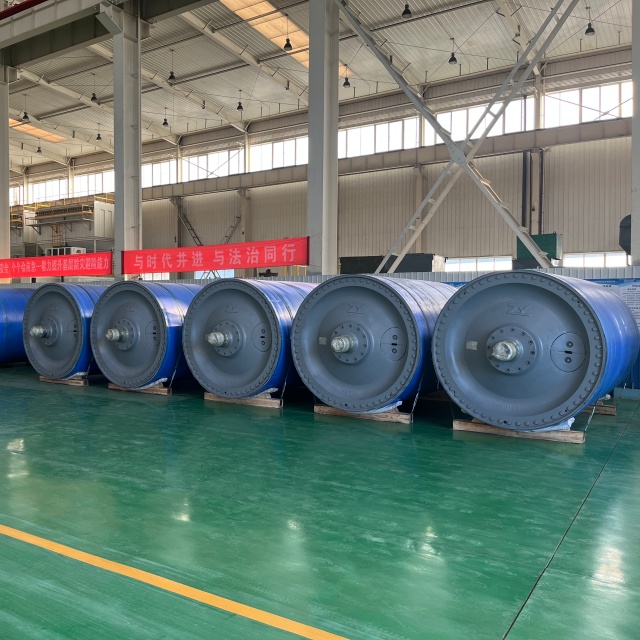

Making Paper Industry Anti-corrosion Dryer Cylinder

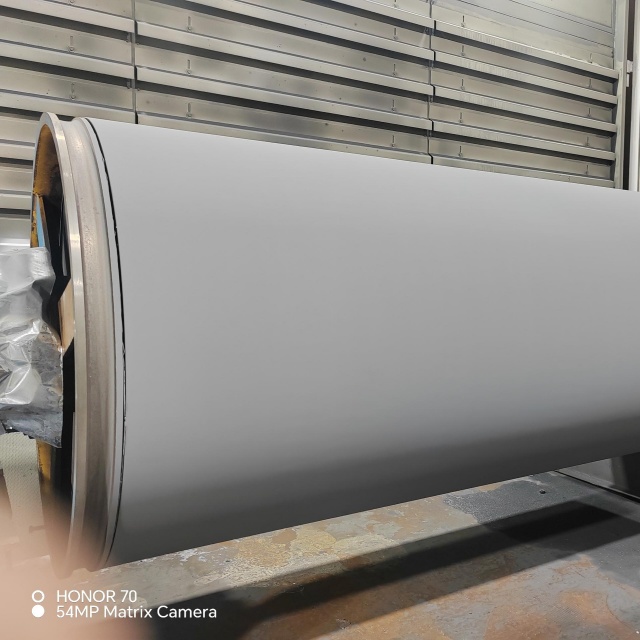

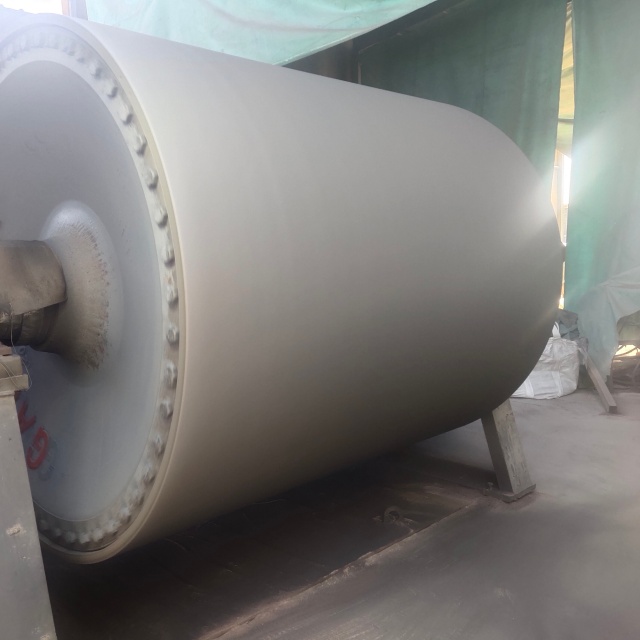

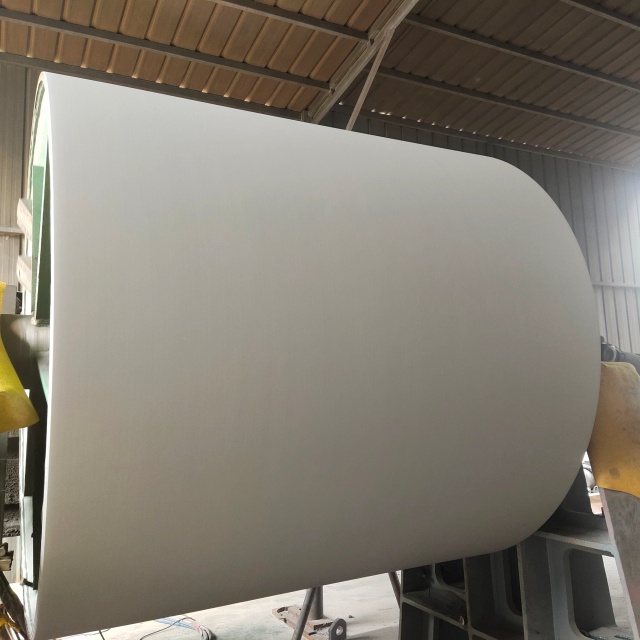

Dryer diameter 3000mm, roll width 2250mm. The dryer adopts supersonic arc spraying, the coating thickness is 0.8, the coating hardness is HB460, after fine grinding treatment, the surface roughness Ra < 0.2, the coating combination is good, no sand holes, pores, coating stripping and other phenomena.

Availability:

Quantity:



Inquire Add to Basket

Model:
customizable
Brand:
TANMNG

Product Description

1. Product Introduction & Application

Dryer cylinder is the key component of the dryer section in paper machines. It transfers heat to dry and shape wet paper webs, widely used for tissue paper, cultural paper, packaging paper, specialty paper and recycled paper. Working under harsh conditions of high temperature, high humidity, corrosion and particle scouring, ordinary cylinders are prone to wear, rust, pulp sticking and coating peeling, which lead to frequent downtime.

We provide custom functional coatings based on actual working conditions, as well as custom sizes and cylinder renovation. All products are available for on-site trial operation. With reliable performance, our products have won wide recognition and repeated orders from global customers.

2. Customization Advantages

Condition-based Custom Coatings
We select suitable coatings according to line temperature, speed, paper type, pulp property and corrosion degree, to meet demands of wear resistance, anti-sticking, anti-corrosion and high temperature resistance.
Custom Size & Renovation Service
Customize dimensions per drawings or original samples, compatible with new, old and imported equipment. We also offer coating renovation for used cylinders to save replacement cost.

3. Coating Types & Working Condition Matching Table

Coating Type	Key Performance	Applicable Conditions	Paper Types	Operation Effects
High Hardness Wear-resistant Coating	High hardness, strong anti-scour ability, excellent adhesion	Heavy abrasion, high impurity, 24h continuous operation	Recycled paper, carton board paper	Reduce surface grooving, keep even heat conduction and extend service life
Anti-stick & Self-cleaning Coating	Smooth surface, no pulp adhesion, good self-cleaning property	Fine paper production, strict requirement on paper surface	Thin paper, high-grade cultural paper	Eliminate pulp sticking and paper defects, cut down cleaning frequency
Anti-corrosion Protective Coating	Moisture-proof, acid & alkali resistant, anti-rust	High humidity, dry-wet alternation, corrosive environment	All conventional paper types	Prevent rust, pitting and coating peeling for long-term stable operation
High-temperature Anti-oxidation Coating	Excellent thermal stability, anti-aging, stable heat conduction	Long-term high temperature and temperature fluctuation	Heat-set paper types	Keep coating intact at high temperature and ensure uniform drying
General Composite Coating	Balanced performance, cost-effective	Medium & low speed lines, stable working conditions	Ordinary cultural paper, packaging paper	Meet daily production needs with good cost performance

4. On-site Trial & Customer Feedback

All coated dryer cylinders support on-site installation and testing. With high surface flatness and uniform heat conduction, they effectively solve common problems like pulp sticking, rust and uneven drying.

Long-term application proves that our customized cylinders have 2 to 4 times longer service life than standard products. Equipment failure rate and maintenance cost are greatly reduced. We enjoy high customer satisfaction and repurchase rate.

5. Common Problems & Solutions

Pulp sticking and paper stains
Solution: Apply anti-stick & self-cleaning coating for smooth surface and easy paper release.
Rust, pitting and coating peeling in humid environment
Solution: Use anti-corrosion protective coating to isolate corrosive media.
Rapid wear and grooving caused by particle scouring
Solution: Adopt high hardness wear-resistant coating to enhance anti-scour performance.
Coating aging and poor drying effect at high temperature
Solution: Choose high-temperature anti-oxidation coating to maintain stable performance under heat.
High cost for replacing old cylinders
Solution: Professional coating renovation to restore working performance economically.

6. Export Service

As a direct manufacturer, we accept custom orders, bulk orders and cylinder renovation projects. One-stop service includes working condition analysis, coating selection, precision processing, quality inspection and global delivery. English technical documents and test reports are available for international buyers.

Contact us for customized solution and free quotation!
