Views: 0 Author: Site Editor Publish Time: 2026-05-14 Origin: Site
Premature coating degradation leads to unexpected asset downtime, accelerated substrate corrosion, and expensive rework. Industrial operators often blame defective material batches when applied layers crack or peel prematurely. However, the skeptical reality proves quite different. Most field failures stem from systemic process deviations rather than poor powder or wire quality. These missteps range from inadequate surface preparation to uncontrolled internal stress generated during the application phase. We must systematically diagnose the root causes of thermal spray coating failure to halt these expensive replacement cycles. This article outlines industry-standard inspection criteria for engineers and plant quality managers. You will discover a clear evaluation framework for selecting the appropriate thermal spray coating methods. We guide you through matching the exact hardware and processes to your specific environmental demands, ensuring long-term asset reliability.
Surface Prep is Paramount: Industry data indicates that over 60% of adhesion failures stem from improper surface preparation (sub-optimal roughness profile or residual contaminants).
Stress vs. Thickness: Applying coatings beyond recommended thresholds (e.g., >500 μm for certain rigid processes) exponentially increases residual stress, leading to mud-cracking or delamination.
Porosity Creates Pathways: Microscopic voids act as capillary tunnels for moisture and corrosive agents, eventually oxidizing the bond coat and causing blistering from the inside out.
Process Automation is Key: Human error (variable standoff distance and spray angles) is a leading cause of defects. Modern, automated thermal spray equipment is required for scalable, repeatable QA.
Engineers encounter several typical defect modes in demanding industrial environments. Identifying these visual indicators early helps you isolate the underlying root causes effectively. We break down the top four structural failures below, outlining exactly what to watch out for during routine inspections.
Delamination and Peeling (Poor Adhesion)
You can visually identify this failure when protective layers flake off in distinct sheets. Tap the surface lightly with an inspection tool. If you hear a hollow sound, the internal bond has completely failed. The root cause usually traces back to an insufficient substrate anchor profile. Operators might miss critical recoat windows. Alternatively, you might face an extreme mismatch in thermal expansion coefficients between the metal substrate and the rigid top layer.
Thermal and Mud Cracking
This defect looks like a complex network of fractures resembling dry mud. These cracks often penetrate completely down to the metallic bond coat. The root cause involves excessive internal tensile stress accumulating within the material structure. Single-pass over-application frequently triggers it. You will also see this failure when extreme heat builds up during the spray application or when drastic, uncontrolled cooling variations occur.
Excessive Porosity and Permeability
Inspectors typically notice a spongy surface texture, microscopic dark spots, or localized rust bleeding through the exterior. The root cause heavily links to low particle velocity during the spraying phase. Rapid solvent evaporation or an improper spray angle also traps ambient air. These microscopic voids ruin structural integrity and act as direct pathways for environmental degradation.
Blistering and Internal Corrosion
Look for dome-shaped formations swelling on the surface. You will frequently spot active rust forming at the edges of these blisters. Soluble salts left on the bare substrate cause severe osmotic blistering. In other cases, moisture trapped beneath the newly applied layer rapidly vaporizes. This trapped moisture pushes the structure outward from within, destroying the protective barrier entirely.
Surface mechanics govern whether a protective layer survives its operational lifespan. We often overlook the hidden physics acting on the microscopic level. Understanding these dynamics prevents catastrophic degradation.
Mechanical interlocking drives physical adhesion. Industry standards dictate strict surface cleanliness protocols. You must achieve optimal surface roughness, typically exceeding 2 μm Rz, to succeed. Without this specific jagged profile, mechanical interlocking entirely fails. Over 60% of field failures link directly back to skipped steps in the blasting and cleaning phase. Always verify compliance with SSPC-SP 5 / NACE No. 1 before spraying begins.
Manual application introduces severe inconsistencies. A reliable thermal spray process demands a precise 90-degree perpendicular spray angle relative to the substrate. Deviating from this angle guarantees structural weakness. Dropping below 45 degrees produces a highly oxidized, weakly bonded structure. Furthermore, excessive standoff distance cools flying particles too early. This early cooling spikes porosity levels, leading to rapid, unpredictable degradation.
We must rethink how we address industrial corrosion. Traditional, low-velocity spray methods often fail to create dense, nano-crystalline structures. Instead, they leave tiny internal voids. Corrosive media easily penetrate these voids over time. The internal interface then oxidizes, fundamentally destroying the bond from the inside out. High permeability always acts as the primary precursor to massive delamination.
Selecting the correct application method prevents premature breakdown. Engineers and plant managers must use a strict decision-stage framework. You cannot apply a one-size-fits-all approach to complex industrial assets.
Below is a comparative chart to help operators select the most appropriate operational solution.
Thermal Spray Methods Comparison Chart | ||
Spray Process | Best Application Environments | Key Evaluation Criteria & Integrity Features |
|---|---|---|
High-Velocity Oxygen Fuel (HVOF) | Severe wear and corrosive environments (e.g., chemical tanks, high-pressure valves) | Delivers exceptionally high bond strength (>70 MPa) and minimal porosity (1-3%). Greatly reduces permeability-related failures. |
Plasma Spray | Thermal barrier coatings, ceramics, and aerospace turbine components | Ideal for high-temperature resistance. Process controls must strictly manage heat input to prevent substrate warping or coating stress. |
Arc and Flame Spray | Large-scale, cost-sensitive infrastructure repair or dimensional restoration | Higher inherent porosity limits standalone corrosion resistance. Often requires supplementary sealers to prevent failure. |
This method works best for severe wear and highly corrosive environments. Think of chemical storage tanks and high-pressure flow valves. Evaluation criteria heavily favor HVOF for its long-term durability. It delivers exceptionally high bond strength, routinely exceeding 70 MPa. It also maintains minimal porosity between 1-3%. While the initial setup runs more expensive, it drastically reduces permeability-related failures down the line.
Plasma application proves ideal for thermal barrier layers, specialized ceramics, and aerospace turbine components. The evaluation criteria highlight its superior high-temperature resistance. However, process controls must strictly manage thermal heat input. If you fail to regulate ambient temperature parameters, dangerous substrate warping or severe internal coating stress will rapidly occur.
We recommend this approach for large-scale, cost-sensitive infrastructure repair projects. It also handles basic dimensional restoration well. The evaluation criteria note a distinct limitation here. Higher internal porosity limits its standalone corrosion resistance capabilities. Operators frequently require supplementary chemical sealers to prevent early failure in wet environments.

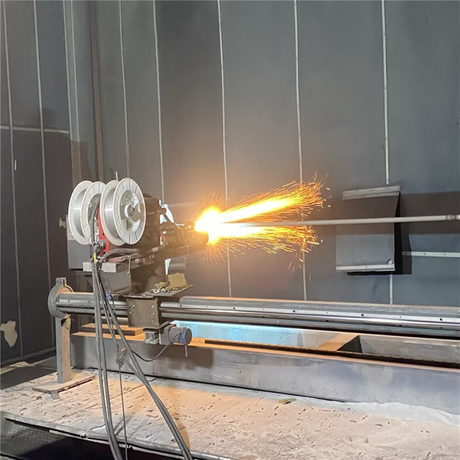

Upgrading industrial hardware significantly mitigates your daily operational risks. We must remove human inconsistency from the shop floor. Investing in high-quality Thermal Spray Equipment directly correlates to vastly longer asset lifespans.
Manual application inherently introduces critical variations. Material feed rate and traverse speed fluctuate heavily depending on the operator. Upgrading to robotic-controlled machinery guarantees a perfectly uniform film build. It perfectly distributes mechanical stress across the entire geometry. Automation completely standardizes your output quality, eliminating the leading cause of unpredictable defects.
Inconsistent powder delivery actively destroys structural integrity. Equipment utilizing real-time mass-flow control prevents the dangerous surging or starving of material powder. When powder flow fluctuates, localized soft spots form. You also risk depositing unconsolidated layers prone to peeling. Closed-loop systems eliminate this defect entirely by continuously regulating exact feed ratios.
Ambient conditions dictate your adhesion success rate. Advanced setup environments actively monitor ambient humidity and baseline substrate temperature. They deliberately neutralize the environmental variables triggering moisture entrapment and osmotic blistering. You must tightly control the micro-climate immediately surrounding the part during the entire spraying sequence.
When evaluating hardware vendors or planning internal upgrades, prioritize digital data logging. Quality systems must feature data-logging capabilities to maintain an unquestionable audit trail. You need to record technical parameters for every coated part. This precise data ensures scalable, repeatable quality assurance over time.
You must define clear success criteria before project sign-off. Relying on basic visual checks alone leaves expensive assets deeply vulnerable. We implement standardized physical tests to quantitatively prove structural soundness.
Bond Strength and Adhesion Testing: You must utilize standard ASTM D4541 pull-off tests. This rigorous procedure quantitatively proves distinct layer cohesion. The measured pull strength must definitively exceed the application’s intended operational shear stress.
Dry Film Thickness (DFT) Strictness: Employ precise electromagnetic or ultrasonic thickness gauges. You need to verify the thickness stays exactly within the engineered tolerance envelope. Severe over-thickness exponentially increases internal tension. Controlling your DFT actively prevents stress-cracking in rigid applications.
Porosity Assessment and Microstructural Analysis: Follow specific ASTM E2109 testing guidelines. Lab technicians often rely on optical microscopy or scanning electron microscopes (SEM) on prepared test coupons. You must verify internal void percentages remain safely below the critical threshold for the specified operating environment.
Bend Testing for Ductility: Implement this mandatory pre-production quality check. You need to ensure the formulation comfortably withstands mechanical flexing. If large-scale flaking or crumbling occurs during the bend test, the current batch fails and requires immediate recalibration.
Preventing surface degradation requires a proactive mindset. We must abandon reactive maintenance strategies in favor of aggressive, front-end process control. The root causes of peeling, cracking, and blistering rarely happen by pure accident. They result from measurable deviations in surface preparation, application spray angle, and internal stress limits.
For procurement and engineering teams, your next operational steps are clear. First, audit your current surface preparation protocols to ensure they rigorously meet strict industry standards. Next, benchmark your existing coating porosity metrics directly against established ISO and ASTM guidelines. Finally, evaluate your daily production hardware. Upgrading to automated, high-velocity thermal spray equipment often represents the most reliable path to secure maximum asset longevity. Standardize your QA protocols today to completely eliminate costly rework tomorrow.
A: Point-repairs are generally unadvisable for systemic failures like poor surface preparation. Patching does not address the underlying lack of adhesion, meaning adjacent areas will likely fail next. Complete stripping, re-blasting (with feathered edges if partial), and recoating are required.
A: It depends heavily on the application. For anti-corrosion barriers like HVOF, porosity must strictly remain under 1-3%. For thermal barriers or abradable coatings, higher, engineered porosity levels (10-15%) are actually required to manage thermal shock.
A: High ambient humidity causes microscopic condensation on the substrate post-blasting. If sprayed over, this moisture vaporizes under the thermal load, leaving behind voids or creating internal steam pressure that actively pushes the coating away from the metal.
