Plasma Spray Coating Vs HVOF: How To Select The Right Coating Method

Views: 0     Author: Site Editor     Publish Time: 2026-05-14      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Component failure in extreme industrial environments causes catastrophic downtime. It also forces operations into compounding replacement cycles for critical machinery. Specifying the wrong thermal spray technique severely accelerates this material degradation. While both popular methods successfully extend component lifespan, they resolve fundamentally different mechanical and environmental stressors. Too often, engineers struggle to differentiate between them. They rely on generic assumptions rather than specific metallurgical realities. They might select a heat-resistant layer when they actually need severe abrasion protection.

This guide moves beyond surface-level definitions to provide a clear, evidence-based evaluation framework. We will explore exactly when you should deploy heat-driven versus velocity-driven deposition methods to protect vital parts. You will learn how to align these advanced technologies with your specific operational parameters. We will also examine critical structural constraints. Matching the exact process to your operational reality ensures maximum long-term reliability and equipment performance.

Key Takeaways

  • Primary Stressor Dictates the Method: Use plasma spray for extreme thermal stress and complex geometries; specify HVOF for high-impact abrasion and dimensional accuracy.

  • Material Compatibility: Plasma excels with high-melting-point ceramics; HVOF is the industry standard for dense, heavy carbides.

  • Microstructural Differences: HVOF produces near-zero porosity (<1%) coatings via supersonic speeds, while plasma utilizes extreme temperatures (up to 27,000°F) to melt refractory materials, resulting in slightly higher porosity (2-5%).

  • Infrastructure: Selecting a method requires aligning your facility’s capabilities with specific Thermal Spray Equipment requirements, post-processing limits, and fuel logistics.

The Fundamental Mechanics: Heat vs. Velocity

Plasma processes rely on fascinating physical science. An electrical arc ignites within a specialized torch housing. Operators introduce inert gases directly into this strong electrical field. The supplied gases rapidly ionize inside the confined chamber. This ionization creates a highly powerful plasma plume. Operating temperatures easily exceed 15,000 degrees Celsius during application. Engineers efficiently harness this incredible thermal energy. They inject powdered materials directly into the hot plume. The introduced powder particles melt almost instantly. The fast gas stream propels these molten droplets forward. They strike the targeted substrate and rapidly solidify. You achieve exceptional surface coverage over various base materials.

High-Velocity Oxygen Fuel (HVOF) technology takes a radically different approach. It completely abandons extreme electrical heat generation. Instead, it harnesses sheer explosive kinetic energy. Operators pump liquid or gaseous fuel into a confined combustion chamber. They introduce high-pressure oxygen simultaneously. The chemical mixture ignites continuously inside the gun. This confined combustion generates immense internal pressure. The expanding exhaust gases exit through a precisely engineered converging-diverging nozzle. This specific design accelerates the gas stream past supersonic speeds. Particle velocities easily exceed 1000 meters per second during flight. The heavy powder particles do not fully melt inside the stream. They simply soften slightly. The massive kinetic impact forcefully mechanically bonds them to the target surface.

Selecting appropriate Thermal Spray Equipment fundamentally shifts your daily operational focus. For plasma, you manage complex high-voltage electrical parameters. For HVOF, you must rigorously govern combustible gas logistics and kinetic impact forces.

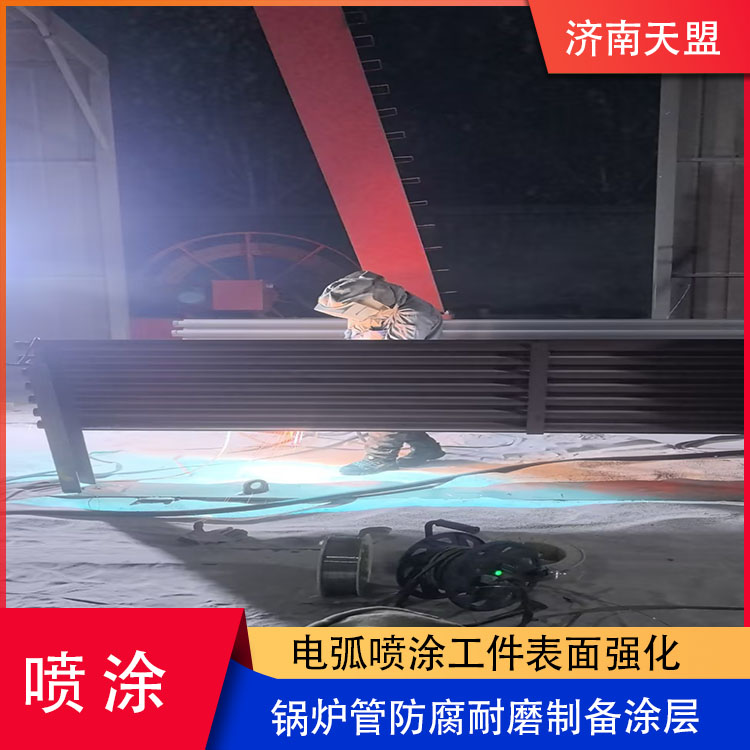

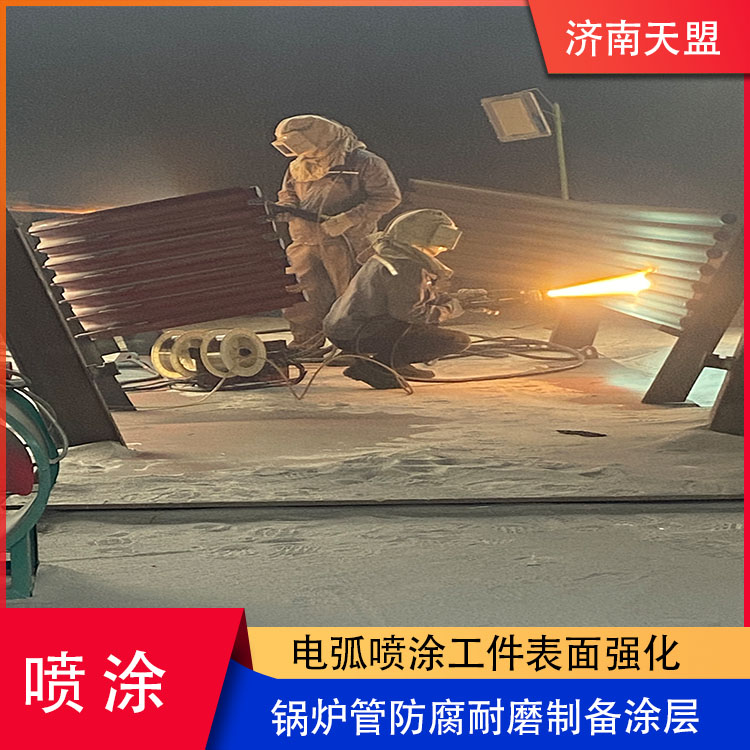

Industrial component undergoing advanced thermal deposition

When to Specify Plasma Spray Coating: Mastering Extreme Heat Stress

Core Capabilities & Material Pairing

You must carefully evaluate your primary operational stressor first. Specify a plasma spray coating when encountering severe temperature fluctuations. Success here means achieving superior thermal insulation properties. It also means maintaining reliable physical clearance control across fluctuating thermal cycles. The deposition method provides excellent electrical insulation characteristics as a secondary benefit.

High-melting-point ceramics serve as the absolute optimal feed materials. Traditional gas combustion cannot melt these specialized powder forms. These robust ceramics easily withstand continuous operating temperatures ranging from 1000°C to 1600°C. You will also find this specific method completely vital for applying sensitive abradable materials.

Standard Industrial Use Cases

Different global industries leverage this high-heat capability daily.

  • Aerospace Manufacturing: Aircraft turbine engine components require massive thermal protection. Combustion chambers and turbine blades survive extreme flight environments entirely through these ceramic barriers. The thermal resistance prevents catastrophic base metal melting during demanding operations.

  • Energy Generation & Petrochemical: Heavy power generation industries deploy thermal barrier coatings extensively. Components exposed to intense cyclical heat stress rely heavily on these protective layers. Gas turbines operate much more efficiently because of them.

Implementation Realities & Limitations

You must understand specific implementation trade-offs before proceeding with specification:

  1. Controlled Porosity Levels: These applied layers typically exhibit 2-5% structural porosity. This specific molecular structure beautifully absorbs aggressive thermal shock. However, highly corrosive fluid environments present a unique challenge. You might need secondary polymer sealants to prevent fluid ingress.

  2. Base Adhesion Strength: Substrate adhesion remains objectively high. However, it falls significantly short of supersonic application capabilities. Sheer mechanical stress can eventually compromise the base bond over time.

  3. Geometrical Flexibility: The electrical torch easily adapts to highly complex geometries. You can efficiently cover massive or irregular surface areas. Strict line-of-sight restrictions remain much less problematic here.

When to Specify HVOF Coating: Combating Severe Wear

Core Capabilities & Material Pairing

You specify an HVOF coating to achieve extreme abrasion resistance. Success demands minimal surface friction and strict dimensional accuracy. Engineers also frequently demand zero-leakage sealing properties for critical moving parts.

Heavy metallic carbides deliver these precise mechanical characteristics perfectly. Tungsten carbide and chromium carbide blend exceptionally well into soft metallic matrices. Operators typically use cobalt or nickel for these essential binders. These premium powder blends often utilize mass fractions exceeding 80%. The resulting dense cermet matrix aggressively resists physical wear and galling.

Standard Industrial Use Cases

Severe physical wear environments demand this specific kinetic application.

  • Aviation & Maritime Transport: Heavy aircraft landing gear shafts now use this technology exclusively. It safely replaces outdated and highly toxic hard chrome plating processes. Maritime pump seal liners also utilize it heavily. They operate reliably within turbulent, abrasive oceanic environments.

  • Petrochemical Processing: Industrial ball valves face high-pressure, abrasive slurry flows daily. High-volume pump internals suffer similar severe mechanical degradation. This velocity-driven deposition heavily protects these critical fluid control parts.

Implementation Realities & Limitations

Consider these exact engineering constraints before finalizing your specification:

  1. Microstructural Advantage: Operators strictly control the internal structural porosity. Levels consistently drop below 1% during standard application. Many applications easily achieve 0.5% internal porosity. The supersonic physical impact creates an exceptionally dense adhesive molecular bond. You also achieve remarkably low surface roughness right out of the booth.

  2. Process Thickness Limitations: Residual compressive stress buildup restricts your practical maximum thickness. You must commonly limit applications to roughly a 0.5mm physical threshold. Pushing beyond this strict limit risks sudden structural delamination.

  3. Physical Geometrical Constraints: The high-speed gas plume dictates a strict line-of-sight application process. Deep internal cylinder diameters remain largely inaccessible. Highly intricate, deeply recessed part geometries also present significant coverage challenges.

Head-to-Head Evaluation Matrix: Aligning Features to Outcomes

A clear comparative analysis simplifies the complex engineering decision process. Use the following structured evaluation matrix to align your specific functional requirements quickly.

Engineering Parameter

Plasma Method

HVOF Method

Primary Application Goal

Thermal & Electrical Protection

Severe Wear & Abrasion Protection

Kinetic Impact Velocity

Subsonic to Moderate impact

Supersonic impact (>1000 m/s)

Coating Density & Porosity

Moderate Density (2-5% Porosity)

Extremely High Density (<1% Porosity)

Optimal Material Sweet Spot

Refractory Ceramics and Oxides

Cermets and Heavy Carbides

Surface Finish (As-Sprayed)

Rougher; demands more post-machining

Smoother; maintains tighter tolerances

The matrix clearly separates the two technologies by their core operational physics. The electrical arc process prioritizes thermal and electrical manipulation. You leverage it primarily for extreme environmental shielding. The supersonic alternative prioritizes brute mechanical toughness. You leverage it to defeat relentless physical friction. Surface finish requirements also heavily influence the final engineering decision. The highly dense carbide layers require far less post-machining material removal.

Implementation Risks

Selecting either application method introduces completely unique technical implementation risks. You must evaluate your available facility capabilities very carefully before proceeding.

Machining and Post-Processing Requirements

The supersonic process produces extreme overall surface hardness. This physical trait requires specialized industrial diamond grinding equipment. Standard steel machining tools simply cannot penetrate the dense carbide layers. The final finishing process demands highly skilled machinists and incredibly robust equipment. Conversely, the arc process generates natural internal porosity. This structural reality often mandates complex post-coat sealing treatments. Operators must apply these liquid sealants perfectly. The sealants effectively prevent harmful fluid ingress during standard mechanical operation.

Facility Integration Requirements

Both deposition processes demand significant safety infrastructure upgrades. The velocity-driven method requires rigorous combustible fuel handling systems. You must safely manage pressurized kerosene, hydrogen, and oxygen logistics. The designated facility needs reinforced blast walls and advanced safety ventilation. The high-heat arc systems eliminate combustible fuels completely. However, they introduce immense industrial electrical challenges. You need specialized high-voltage electrical grid infrastructure. Advanced closed-loop water-cooling systems must also safely dissipate the intense operational heat.

Substrate Compatibility Risks

You must meticulously evaluate potential substrate deformation risks. Supersonic particle impact transfers immense kinetic stress directly into the underlying base material. Fragile or thin-walled components might warp under this sustained mechanical force. You must secure parts rigidly during application. The arc process transfers much higher thermal loads directly into the part. Though the applied heating remains highly localized, this intense heat can alter sensitive base metal microstructures. Proper cooling air jets and active temperature monitoring remain absolutely essential during processing.

Conclusion

  • Failure Analysis Drives Selection: Do not evaluate these distinct technologies based on subjective quality. You must strictly assess the primary mechanical failure mechanism first.

  • Heat vs. Friction Protocol: Shortlist arc-driven methods immediately if your component fails due to severe heat. Shortlist velocity-driven methods if mechanical friction actively drives the component failure.

  • Material Limitations: Select arc processes specifically when you require a dedicated ceramic barrier. Deploy velocity processes only when you need dense carbide hard-facing.

  • Next-Step Action: Audit your previously failed components carefully. Differentiate clearly between thermal degradation patterns and abrasive wear patterns.

  • Expert Consultation: Consult a qualified metallurgical engineer immediately. Have them perfectly match exact powder chemistries to your chosen physical deposition method.

FAQ

Q: Can plasma spray coating handle severe abrasive wear?

A: Yes, operators can apply specific metallic alloys for basic wear resistance. However, supersonic methods significantly outperform it in severe friction scenarios. Velocity-driven deposition provides vastly superior material density. It also delivers much higher mechanical bond strength. These crucial factors remain absolutely vital for surviving severe, continuous abrasion. You should always avoid arc methods for extreme friction applications.

Q: Why is HVOF rapidly replacing hard chrome plating?

A: Supersonic carbide applications offer far superior wear resistance over traditional hard chrome. They completely eliminate the severe environmental and health hazards historically associated with hexavalent chromium processing. Engineers also achieve much better operational fatigue credits for critical aerospace components. The highly dense micro-structure provides excellent long-term corrosion resistance without utilizing toxic chemical baths.

Q: Can you easily apply ceramics using high-velocity oxygen fuel systems?

A: Generally, you cannot. Confined combustion temperatures simply do not reach high enough operational levels. They cannot properly melt robust refractory ceramics. Melting these specialized thermal insulators remains strictly a high-temperature arc territory. Attempting to process ceramics through combustion nozzles usually results in unmelted particles and highly compromised structural adhesion.
