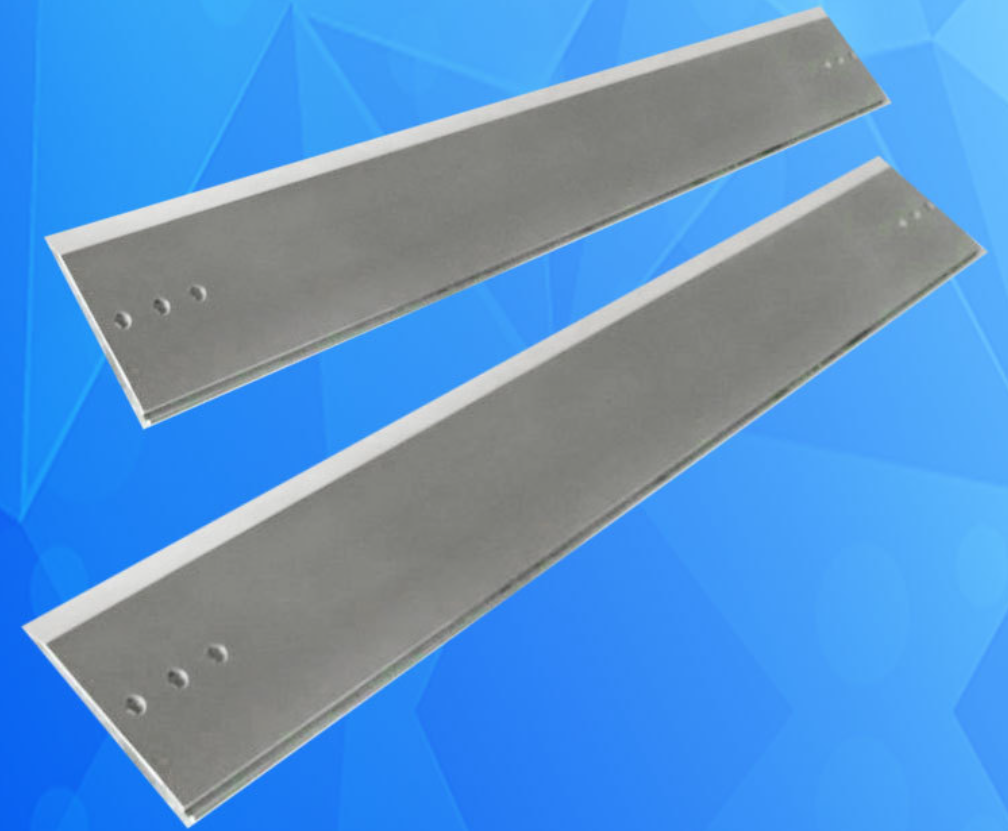

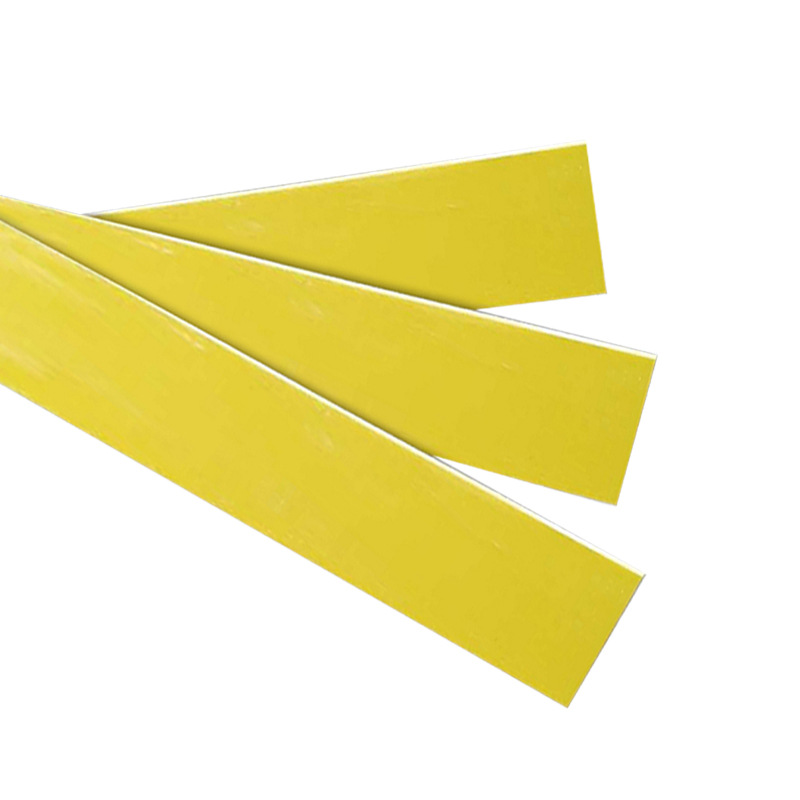

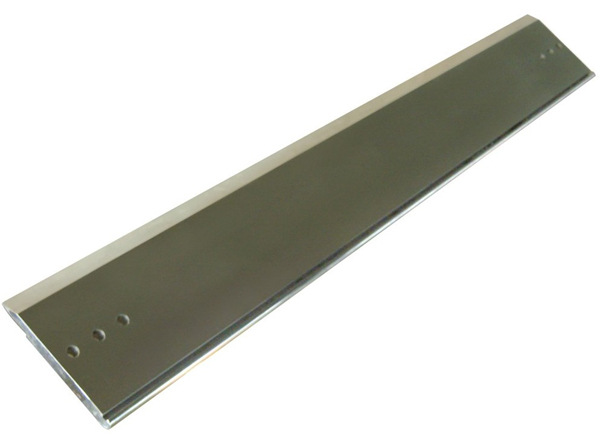

Our high-performance EP coated paper making doctor blade is specially developed for continuous, high-load and high-speed operation of global paper mills. Adopting advanced modified EP composite coating technology, the coating is tightly combined with the blade substrate with ultra-high adhesion, uniform density and zero porosity. Compared with ordinary blades on the market, our EP coating features superior structural stability, effectively avoiding common defects such as coating peeling, edge wear, pulp sticking and chemical corrosion. It maintains stable mechanical performance under long-term high humidity, dust erosion and complex chemical medium environments, delivering consistent scraping, cleaning and paper separating effects. The excellent anti-fouling, wear-resistant and anti-aging properties greatly reduce paper defects, avoid frequent shutdown maintenance, and ensure long-term stable operation of paper machine systems, which is the ideal durable consumable for high-standard paper production lines.
This series of doctor blades supports full-specification customization and covers complete size ranges to adapt to all types of international paper machine models and different production processes. We provide abundant standard and non-standard dimension options, including conventional sizes: length 500mm–8000mm, width 20mm–120mm, thickness 1.0mm–6.0mm. Meanwhile, customized ultra-long, ultra-thin, widened and special-shaped blades are available for special equipment and special working conditions. All core parameters can be precisely tailored, including coating thickness, coating hardness, blade edge angle and surface roughness. Whether for tissue paper, cultural paper, kraft packaging paper or special paper production, our customized blades achieve precise fitting, clean scraping, no paper breaking and no roller scratching. With strong versatility, high fitting accuracy and ultra-long service life, our products effectively lower comprehensive operating costs and create stable production benefits for global paper manufacturing enterprises.
Blade Type | Length Range | Width Range | Thickness Range | Customizable Core Parameters | Application Scenarios |
Standard Conventional Blade | 500mm – 8000mm | 20mm – 120mm | 1.0mm – 6.0mm | Coating hardness, surface roughness, edge angle | General tissue paper, cultural paper, ordinary packaging paper production, standard paper machine models |
Ultra-long Custom Blade | 8000mm+ (Customized) | 30mm – 120mm | 1.5mm – 6.0mm | Coating thickness, overall flatness, flexible edge fit | Large wide-web paper machines, high-yield packaging paper and board paper production lines |
Ultra-thin Precision Blade | 500mm – 6000mm | 20mm – 80mm | 0.6mm – 1.0mm | Micro edge angle, mirror surface treatment, ultra-smooth coating | High-end cultural paper, coated paper, special fine paper, high-precision paper making equipment |
Wide-spec Reinforced Blade | 1000mm – 7000mm | 120mm+ (Customized) | 3.0mm – 6.0mm | Thickened coating, enhanced wear resistance, anti-impact performance | High-load industrial paper machines, recycled paper, kraft paper and high-residue pulp production |
Special-shaped Custom Blade | Customized on demand | Customized on demand | Customized on demand | Special edge shape, asymmetric coating, targeted hardness matching | Non-standard paper machines, special process paper making, customized equipment supporting |
All specifications of EP coated doctor blades support full-dimensional personalized customization. We adjust coating performance, blade precision and overall parameters according to global customers’ paper machine speed, pulp medium and paper types, ensuring perfect fitting of different working conditions, stable scraping effect and long-term service life, meeting diversified procurement demands of overseas paper mills and equipment distributors.
