Views: 0 Author: Site Editor Publish Time: 2026-05-14 Origin: Site
Industrial wear and corrosion represent more than just inevitable maintenance burdens. They present critical engineering challenges requiring advanced surface engineering. You need more than simple cosmetic or temporary fixes. A specialized thermal spray process steps in when conventional methods fail. Engineers design detonation spraying for high-load, extreme-wear environments. This highly precise method provides the robust protection vital components demand. They must survive aggressive, abrasive operational conditions every single day. You cannot simply apply standard industrial paint and expect true longevity. You need a deliberate, calculated metallurgical strategy. This guide equips procurement directors and senior engineers. We provide a clear, objective evaluation framework. You will explore critical material selection criteria in depth. You will also uncover practical operational limitations. We help you make informed sourcing decisions confidently. Discover how to protect your most expensive machinery investments today.
Performance: Detonation spraying achieves <1% porosity and superior bond strength by generating a 3500 m/s supersonic shockwave.
Cost Efficiency: While upfront costs are higher, the Average Equivalent Annual Cost (AEAC) drops significantly due to a lifespan of up to 20+ years.
Material Specificity: Ideal for hard carbides (e.g., WC-Co) that require low substrate temperatures (<150°C) during application to prevent base metal distortion.
Implementation Risks: Buyers must account for "line-of-sight" constraints and stringent OSHA-compliant dust/fume extraction requirements when assessing internal deployment vs. outsourcing.

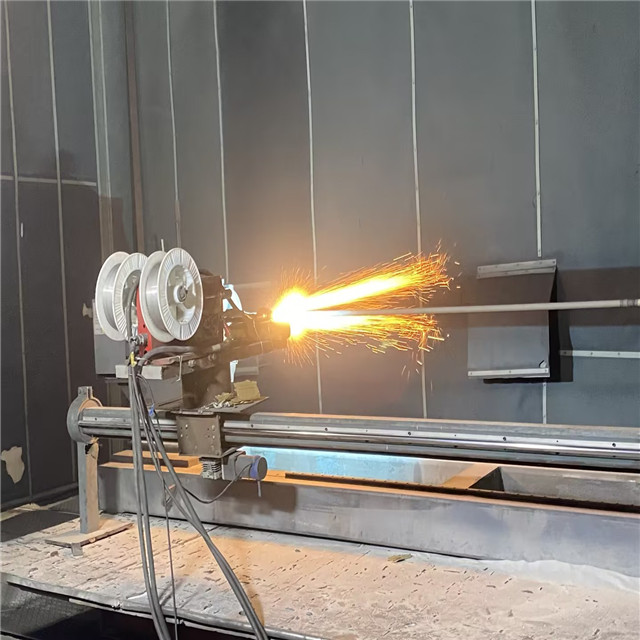

The D-Gun process operates on a uniquely violent mechanism. It mixes oxygen and fuel gas inside a cooled barrel. A spark ignites this mixture at frequencies between 1 and 10 Hz. Each ignition generates a powerful supersonic shockwave. This explosion forces coating powder out of the barrel at extreme velocities. The outcome focuses primarily on kinetic energy rather than thermal energy. Particles strike the target surface at speeds approaching 3500 meters per second.
This kinetic impact creates a major engineering differentiator. It introduces beneficial compressive residual stresses into the coated layer. Thick coatings applied by conventional methods usually accumulate tensile stress. Tensile stress pulls the material apart. It leads to microscopic cracking and premature failure. Compressive stress does the exact opposite. It squeezes the material together. This significantly improves the fatigue life of your components under cyclic loads.
Metallurgically, the bond remains primarily mechanical. However, the extreme velocity forces the particles into an exceptionally tight matrix. This produces an incredibly dense coating structure. Oxygen content typically stays between 0.1% and 0.5%. Porosity drops below 1%. Such density prevents corrosive chemicals from reaching the base metal. You gain an impenetrable armor against aggressive attacks.
The process eliminates the porosity issues common in cheaper alternatives. Traditional arc wire methods leave microscopic voids. Moisture easily penetrates those voids. Moisture then attacks the bare metal beneath. Detonation technology seals the surface completely. Engineers heavily favor this method for offshore drilling equipment. Salty environments destroy standard finishes rapidly. The extreme kinetic transfer guarantees an interlocking structure. Particles flatten instantly upon impact. They form tightly bound overlapping layers. This mechanical interlocking resists shearing forces brilliantly.
Key engineering differences include:
Kinetic Dominance: Speeds reach 3500 m/s for maximum particle impact.
Compressive Stress: Enhances component fatigue life under heavy cyclic loading.
Micro-level Density: Achieves less than 1% porosity for superior chemical protection.
Interlocking Matrix: Resists shearing forces better than standard thermal applications.
Buyers must align project specifications closely with environmental variables. You must evaluate operating temperatures, pH levels, cavitation risks, and impact zones. Different coating materials solve different industrial problems. You should match the material directly to the primary failure mode. A one-size-fits-all approach guarantees premature failure.
Carbides deliver extreme hardness for severe wear applications. Tungsten Carbide-Cobalt (WC-Co) formulations dominate this category. Micro-level formulation differences drastically alter field performance. For example, WC-12%Co generally offers higher hardness and superior wear resistance compared to WC-17%Co. You would specify the 12% blend for pure abrasive environments. You might choose the 17% blend when you need slightly more toughness against minor impacts.
We also see frequent use of Chromium Carbide blends. These blends excel in high-temperature oxidizing environments. They maintain hardness even when exposed to intense exhaust gases. You must carefully evaluate the chemical composition of the operating environment. A highly acidic slurry requires a different binder than a dry abrasive powder. Cobalt binders provide excellent toughness. Nickel binders offer superior corrosion resistance. Your engineering team must weigh these tradeoffs carefully.
This process also features a unique cold working effect. The ignition point inside the barrel reaches 4000°C. However, the substrate temperature rarely exceeds 150°C. This low heat transfer preserves the original structural integrity of the base metal. You avoid warping or distorting precision components. The high-speed particle impact also hardens the surface mechanically. The substrate retains its precise dimensions. You skip expensive post-coating heat treatments.
Below is a comparison chart of common Tungsten Carbide formulations:
Material Formulation | Primary Characteristic | Best Application Scenario |
|---|---|---|
WC-12%Co | Maximum Hardness | Extreme sliding wear, fine dry abrasion |
WC-17%Co | Higher Toughness | Environments involving minor impact forces |
WC-Cr3C2-Ni | Corrosion Resistance | High-temperature acidic or oxidizing environments |
WC-Ni | Chemical Stability | Applications requiring strict heavy-metal compliance |
You must evaluate practical facility risks before adopting this technology. The D-Gun device is large and cumbersome. It relies strictly on a "line-of-sight" application method. It cannot coat deep internal diameters effectively. Complex, obscured geometries also present major challenges. The particles must strike the surface at a direct angle for optimal bonding.
You cannot easily coat the inside of a narrow pipe. The gun requires adequate standoff distance to accelerate particles properly. If the angle of incidence drops below 45 degrees, coating quality plummets. Particles will simply bounce off the surface. This causes severe material waste. It also creates a weak, porous layer. Engineers must review part drawings carefully before specifying this method. Sometimes, you must redesign the component to allow direct spray access.
Ductility limitations pose another serious constraint. Detonation coatings possess very low tensile strength. They do not stretch or flex well. You should avoid applying them to highly ductile components. Parts experiencing significant thermal or mechanical expansion will cause the layer to crack. Ductility mismatches cause catastrophic failures. If your base metal expands significantly under heat, the rigid carbide shell will fracture. You must match the coefficient of thermal expansion as closely as possible.
Environmental, Health, and Safety (EHS) compliance introduces severe operational hurdles. The process generates explosive gases, extreme noise, and carcinogenic metal dust. In-house deployment requires massive safety investments. You must follow strict OSHA mandates carefully.
Consider these mandatory facility upgrades if deploying internally:
Acoustic Shielding: Blast rooms must safely contain noise levels exceeding 140 decibels.
Automated Robotics: Human operators cannot hold the equipment manually during live firing.
Cartridge Dust Collectors: High-efficiency systems must capture hazardous metallic particulate matter continuously.
Gas Management: Facilities require specialized ventilation for volatile oxygen and fuel mixtures.
Because the bond remains primarily mechanical, surface preparation quality is non-negotiable. You must hold vendors to strict Quality Assurance standards. Look for rigorous protocols regarding abrasive blasting. Operators must use precise grit to roughen the surface properly. Worn out grit produces smooth, polished surfaces instead of rough, jagged peaks. The powder will fail to adhere to a smooth surface.
Mechanical machining techniques provide extra physical grip. Machining a dovetail groove creates a physical lock. The coating fills the groove and anchors itself securely. This prevents edge delamination. These steps must happen immediately before spraying begins. Bare metal oxidizes rapidly. Delays between blasting and spraying compromise bond strength entirely. Ask to see their surface preparation maintenance logs during audits.
You should aggressively question equipment and applicator qualifications. Many vendors claim they can apply these coatings. Very few actually possess the rigorous quality control systems required. Ask potential partners about their real-time monitoring capabilities. Modern monitoring tools separate top-tier vendors from average shops. Do they utilize IoT sensors? Can they detect coating anomalies using acoustic monitoring?
Acoustic sensors listen to the spray plume constantly. They detect misfires or fuel ratio imbalances instantly. The system aborts the process before ruining an expensive part. You should demand this level of oversight. Modern applicators use data to guarantee consistency across production runs. They do not rely solely on operator intuition.
Use this shortlisting checklist when requesting a quote for Thermal Spray Customized Products:
Define your substrate limits precisely. Specify maximum acceptable part temperatures.
Specify the exact wear type clearly. Is it abrasive, adhesive, or erosive wear?
Request detailed surface preparation documentation. Demand robust quality control plans.
Ask for historical case studies involving your specific base metal alloy.
This technology serves as a critical investment in component longevity. It maximizes operational uptime across your most vital industrial machinery. You should reserve this process for high-stakes wear environments. Aerospace rotors, oil and gas valves, and heavy mining equipment benefit immensely. You now possess a clear framework for evaluating this advanced surface engineering technique.
Do not settle for frequent part replacements. By understanding the mechanical advantages, you can justify the technical requirements. By recognizing the limitations, you avoid costly specification errors. The supersonic particle velocity changes the metallurgical game completely. You gain compressive strength, extreme density, and unparalleled wear resistance.
Do not let severe abrasion degrade your profitability. Encourage your team to consult specialized material engineers immediately. You should run a localized pilot test on a failing component first. Request a targeted proposal tailored to your specific friction and corrosion challenges. Take action today to extend the life of your critical mechanical assets securely.
A: Thicknesses generally range from 0.05 mm to 0.5 mm. You must balance the necessary wear allowance against the risk of delamination. Applying excessively thick layers increases internal stress. This can cause the material to flake off under heavy loads. Always consult a metallurgical engineer to determine the precise optimal thickness for your specific operational environment.
A: Yes, but it requires extreme caution and specialized techniques. Plastics and composites possess low melting points and high ductility. The supersonic particles can damage bare composite surfaces easily. You must apply a specialized metallic bond coat first. This intermediate layer protects the fragile substrate while providing a receptive surface for the dense carbide topcoat.
A: Detonation generates significantly higher kinetic energy density through explosive shockwaves rather than continuous combustion. This results in a unique compressive residual stress profile. HVOF is excellent for many applications, but the D-gun method provides superior fatigue resistance for heavily loaded components. It ultimately creates a slightly denser, more impact-resistant surface.
