Views: 0 Author: Site Editor Publish Time: 2026-05-14 Origin: Site
Industrial component failure consistently traces back to two relentless forces: corrosion and mechanical wear. Plant managers and maintenance engineers constantly battle these elements to keep operations running smoothly. High-end solutions like HVOF or plasma spray offer extreme density. However, they often over-spec the actual engineering requirement and inflate maintenance budgets unnecessarily. You need a surface treatment balancing durability, efficiency, and strict budget controls.

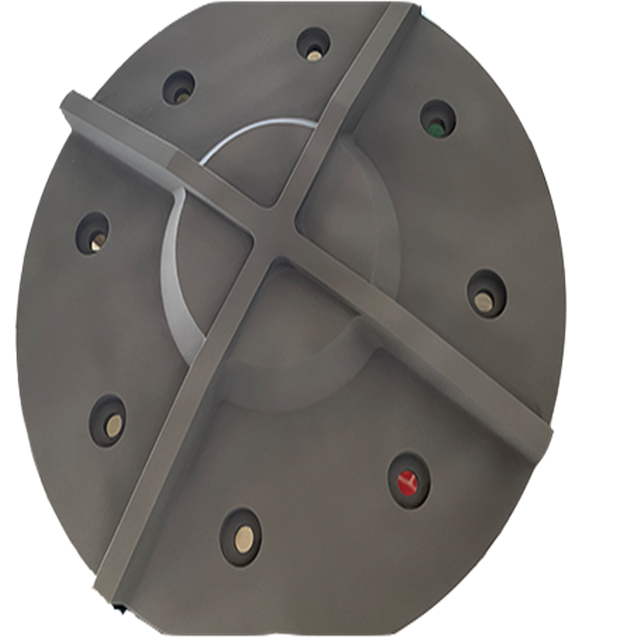

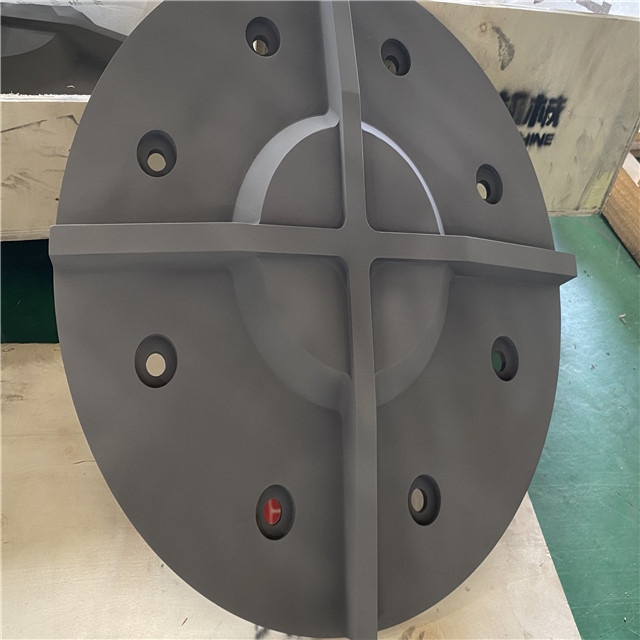

arc spray coating provides a highly scalable, "cold" thermal spray process. It excels at dimensional restoration and anodic protection without excessive operational overhead. We will explore its core materials, strategic applications, and strict quality control measures. You will learn how to maximize component lifespan using proven engineering standards. By understanding these specific application rules, you can confidently integrate this technology into your routine maintenance cycles.
Process Efficiency: Utilizes electrical current and compressed air, eliminating the need for expensive combustible gases.
Zero Thermal Distortion: Operates as a "cold process," meaning the substrate remains cool enough to prevent warping or metallurgical changes.
Cost-to-Performance: Delivers 2–3x the bond strength of traditional flame spray at roughly one-third the operational cost per square meter.
Material Versatility: Supports custom twin-wire alloying and cored wires, enabling cost-effective alternatives to premium nickel-based coatings.
Implementation Rule: Inherent coating porosity requires strict, timely application of sealants (within 24 hours) for maximum lifespan.
Plant operators must compare surface treatments directly. This comparison establishes realistic baseline expectations for project cost, application speed, and structural integrity. Arc spraying stands out when you look closely at operational economics.
The energy efficiency of this system is unmatched in the surface finishing industry. It relies entirely on standard electricity, via DC rectifiers, and compressed air. This setup completely bypasses the complex logistics of managing oxygen or combustible fuel gases. Standard flame spray methods require constant fuel monitoring and costly gas cylinder replacements. You avoid these logistical headaches entirely.
You can expect significant unit-area cost reductions. The operational cost per square meter is substantially lower than standard flame spray methods. Meanwhile, it achieves much higher deposition rates. Operators can coat large infrastructure components faster and cheaper.
Unlike traditional welding or standard flame spray, this technique functions as a true "cold process." The molten metal particles atomize and travel toward the substrate. Upon impact, they cool at extremely rapid rates, sometimes reaching up to 100,000 K/s.
This rapid cooling eliminates any need to pre-heat the substrate. More importantly, it removes the risk of thermal distortion. Precision machine components, like delicate pump shafts or thin-walled cylinders, remain perfectly intact. The base metal undergoes no unwanted metallurgical changes.
Engineers commonly critique arc sprayed surfaces for having lower density than HVOF coatings. However, modern equipment innovations have shifted this narrative. High-velocity air cap upgrades allow the process to achieve exceptional particle velocities.
These upgraded velocities approach plasma spray quality. You get a dense, highly bonded layer at a fraction of the cost. The following chart summarizes how upgraded arc systems compare to traditional methods.
Process Efficiency Chart: Thermal Coating Comparisons | |||
Process Type | Energy Source | Relative Cost / m² | Bond Strength Rating |
|---|---|---|---|
Standard Flame Spray | Combustible Gas + Oxygen | High | Low to Medium |
Standard Arc Spray | Electricity + Air | Low | High |
High-Velocity Arc Spray | Electricity + High-Pressure Air | Low | Very High |
Successful surface protection requires a strict decision framework. You must carefully match the feedstock metal to the operational environment. Engineers usually base this decision on local pH levels and expected mechanical wear.
Zinc and aluminum serve as the foundational materials for anti-corrosion applications. They operate via different protective mechanisms. Zinc provides excellent sacrificial, or anodic, protection. It willingly oxidizes to protect the underlying steel. Zinc works best in moderately alkaline environments, typically spanning a pH of 6 to 12.
Aluminum operates differently. It creates a tough, passive barrier film. This film resists breakdown and withstands much higher temperatures, safely operating up to 550°C. Aluminum generally performs better in slightly acidic conditions, covering a pH range of 4 to 8.5.
Material Selection Table: Zinc vs. Aluminum | |||
Material | Primary Mechanism | Optimal pH Range | Maximum Temperature |
|---|---|---|---|
Pure Zinc (Zn) | Sacrificial / Anodic | 6.0 – 12.0 | ~60°C (Immersion) |
Pure Aluminum (Al) | Passive Barrier | 4.0 – 8.5 | Up to 550°C |
Industry consensus strongly favors an alloy blend over pure metals for severe environments. Typical marine and freshwater infrastructure standards dictate an 85% Zinc and 15% Aluminum alloy.
This specific blend delivers unparalleled results. It offers up to 30 to 60 years of expected service life in severe marine environments. The 85-15 wire combines the active sacrificial properties of zinc. Simultaneously, it leverages the superior adhesion and structural passivation of aluminum. Engineers universally specify this blend for long-term bridge and dam protections.
Corrosion is not the only threat. High-temperature oxidation and aggressive wear destroy machine parts quickly. Historically, facilities relied on extremely expensive nickel-based superalloys to combat this damage.
Advanced iron-based (Fe-based) cored wires now offer a highly economical alternative. Manufacturers fill these hollow wire casings with hard phases, like specialized carbides. When sprayed, they produce a tough, wear-resistant matrix. They easily substitute premium nickel coatings for high-temperature oxidation protection. This switch drastically reduces material expenditures without sacrificing operational reliability.
Scoping the solution correctly is vital. You must pinpoint the specific maintenance and manufacturing scenarios where this process yields the highest return on investment. The following applications represent the most strategic deployments in industrial settings.
Dimensional Restoration (OEM Spec Recovery): Heavy machinery inevitably suffers from wear, scoring, or misaligned geometries. You can completely rebuild pump shafts, hydraulic cylinders, and printing rollers. The equipment safely builds up metal layers up to 0.25 inches thick. It perfectly restores components back to original OEM specifications without altering the base metal's temper.
Custom Alloy Generation (Twin-Wire Capability): The spray gun feeds two different wires simultaneously into the arc zone. This unique twin-wire capability generates custom alloys directly on the part surface. For instance, feeding carbon steel and bronze creates an enhanced wear-resistant bearing surface. Blending stainless steel and molybdenum produces an exceptional anti-galling layer.
Self-Lubricating Bearing Surfaces: We often view coating porosity as a negative trait. However, we can reframe it as a functional benefit. Soft bearing surfaces, like babbitt or bronze, contain microscopic pores. These micro-pores absorb and retain lubricating oils continuously. This inherent oil retention accommodates minor shaft misalignments. It prevents dry-friction startups and significantly extends overall part life.
These targeted applications keep heavy industrial plants running efficiently. They turn expensive replacement cycles into manageable, localized repair jobs.
Every technology has boundaries. We must apply a skeptical lens to understand exactly where this surface treatment falls short. Transparent boundaries help engineers plan necessary mitigations.
Standard electric arc systems inherently produce between 3% and 10% porosity. The atomized droplets stack upon each other, leaving microscopic voids. You must acknowledge this structural reality.
Without proper sealing, external electrolytes can penetrate these pores. Moisture or salt water will eventually reach the vulnerable steel substrate. Left untreated, sub-surface corrosion will inevitably delaminate the entire protective layer. We discuss mandatory sealing rules in the quality assurance section to mitigate this exact risk.
Some applications demand absolute zero-porosity. Others require extreme hard-chrome replacements subjected to severe, continuous point-loading. In these highly specialized scenarios, arc systems reach their mechanical limit.
You must clearly state that HVOF (High-Velocity Oxygen Fuel) remains the superior choice here. HVOF generates incredibly dense, tightly packed microstructures. While HVOF is undeniably costlier, it handles extreme point-loading far better than any electrically atomized alternative.
Many industries want to eliminate toxic electroplating baths. Arc sprayed tin or zinc presents a fantastic, eco-friendly alternative. It completely removes hazardous hexavalent chromium or cyanide from your facility.
However, note a key engineering trade-off. Sprayed metals cannot achieve the same microscopic, conformal smoothness out-of-the-box as electroplating. The resulting finish is inherently rougher. If you require precise geometric tolerances, you must schedule post-machining or grinding steps to finalize the surface.
Implementing a successful surface protection program demands strict oversight. We outline the precise preparation and testing criteria required below. Following these implementation realities ensures the stated 30-plus year lifespans.
Coating adhesion relies almost entirely on mechanical interlocking. Successful adhesion demands rigorous abrasive blasting before any metal is sprayed. Operators must aim for a sharp, angular surface profile roughness between 75 and 110 μm.
Cleanliness is equally critical. We warn heavily against invisible salt contamination. Surface chlorides must remain below 20 mg/m². Additionally, crews must monitor ambient humidity limits carefully. Application must halt if relative humidity exceeds 85%, as micro-condensation will ruin the bond.
We established earlier that managing porosity is vital. Therefore, you must enforce mandatory sealing timelines across all maintenance crews.
Establish a hard rule: teams must apply epoxy or vinyl sealers within 24 hours of spraying. These low-viscosity sealers penetrate deeply. They effectively plug all microscopic pores before airborne oxidation or moisture infiltration occurs. Delaying this step compromises the entire protective system.
Buyers and project managers should require comprehensive vendor documentation. Do not accept visual inspections alone. Mandate the following quality assurance tests before deploying critical components:
Pull-Off Tests: Utilize standardized pneumatic or hydraulic dollies. Target a minimum bond strength greater than 7.0 MPa.
Bend Tests: Spray a sample panel of identical thickness. Bend it around a specified mandrel to verify coating integrity and check for brittle flaking.
Profile Verification: Document the initial blast profile using replica tape to confirm the 75–110 μm requirement was met.
Environmental Logs: Review the contractor's humidity and temperature logs spanning the duration of the application window.
Strict enforcement of these protocols guarantees field performance matches laboratory expectations.
Arc surface treatments stand as the premier choice for organizations looking to scale their anti-corrosion efforts. It seamlessly handles major part restoration tasks without incurring the massive overhead associated with fuel-gas systems. By embracing high-velocity hardware upgrades and specialized twin-wire feeds, industrial facilities can achieve exceptional durability at a fraction of standard costs.
Decision-makers should immediately audit their current component failure rates. Define your specific environmental pH ranges and mechanical wear parameters. Once identified, request high-velocity sample tests from qualified vendors to see the financial and operational benefits firsthand.
A: Yes, in many structural applications. It completely avoids the severe thermal warping associated with the hot-dipping process. Furthermore, operators can perform the application on-site or in the field. However, galvanizing remains superior for thoroughly coating complex internal geometries and hidden pipes.
A: Absolutely. While zinc is limited to lower temperatures, specific materials excel in extreme heat. Utilizing pure aluminum or specialized Fe-based cored wires forms dense oxide barriers. These specific barriers perform exceptionally well at sustained high temperatures.
A: No, it operates as a cold process. Surface temperatures of the underlying part rarely exceed 150°C during application. This rapid localized cooling makes Thermal Spray inherently safe for precision geometries and heat-sensitive alloys prone to metallurgical distortion.
